Chipset

Intel® X299

Memory

(Intel® Core™ i9 10000 X-Series CPU)

8 x DIMM, Max. 256GB, DDR4   4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/

3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2

800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)

8 x DIMM, Max. 256GB, DDR4   4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/

3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O

C.)/2800(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory

Quad Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics   of individual CPUs.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors   Lists).

Multi-GPU Support

Supports NVIDIA® 3-Way SLI® Technology

Supports NVIDIA® 2-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

48-Lane CPU-

(Intel® Core™ i9 10000 X-Series CPU)

3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *1

44-Lane CPU-

(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)

3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2

28-Lane CPU-

(Intel® Core™ i7 7000 X-Series CPU)

3 x PCIe 3.0 x16 (x16/x8/x4 mode)

Intel® X299 Chipset

1 x PCIe 3.0 x4 *3

Storage

Intel® Core™ X-Series Processors Family :

1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type   2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4

Intel® Rapid Storage Technology Enterprise supports

Intel® X299 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage   devices support (both SATA & PCIE mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage   devices support (PCIE 3.0 x 4 mode)*5

8 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

LAN

Aquantia AQC-107 10G

Intel® I219V

Anti-surge LANGuard

ROG GameFirst Technology

Wireless Data Network

Intel® Wi-Fi 6 AX200

Supports channel bandwidth: HT20/HT40/HT80/HT160

2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual   frequency band 2.4/5GHz

Up to 2.4Gbps transfer speed

Bluetooth

Bluetooth® 5.0

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

- Supports : Jack-detection, Multi-streaming, Front Panel   Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR   recording input

- SupremeFX Shielding Technology

- ESS®SABRE9018Q2C DAC/AMP

- Supports up to 32-Bit/192kHz playback *6

Audio Feature :

- DTS® Sound Unbound

- Optical S/PDIF out port(s) at back panel

- LED-illuminated design - Brighten up your build with the   gorgeous illuminated audio trace path.

- Sonic Radar III

- Sonic Studio III + Sonic Studio Virtual Mixer

USB Ports

Rear USB Port

1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s)

(1 x Type-C)

2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)

(1 x Type-A + USB Type-CTM)

8 x USB 3.2 Gen 1 (up to 5Gbps) port(s)

(8 x Type-A)

1 x USB 2.0 port(s)

(1 x Type-A)

Front USB Port

2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)

4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)

2 x USB 2.0 port(s)

ROG Exclusive Features

Clear CMOS button

Extreme Engine Digi+ :

- MicroFine Alloy Chokes

- 10K Black Metallic Capacitors

ROG Extreme OC kit :

- OptiMem III

- ReTry button

- Safe Boot button

- Start button

- Slow Mode

- LN2 Mode

- EZ Plug

- FlexKey Button

ProbeIt

ROG Exclusive Software

- Mem Tweakit

- RAMCache III

- RAMDisk

- CPU-Z

- GameFirst V

- Sonic Radar III

- Overwolf

- Sonic Studio III + Sonic Studio Virtual Mixer

ROG DIMM.2 module with heatsink

ROG Aluminum heatsink cover

Special Features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual   Intelligent Processors 5 :

- 5-Way Optimization tuning key perfectly consolidates TPU, EPU,   DIGI+ VRM, Fan Xpert 4, and Turbo Core App

AI Overclocking

LiveDash OLED 1.77 ”

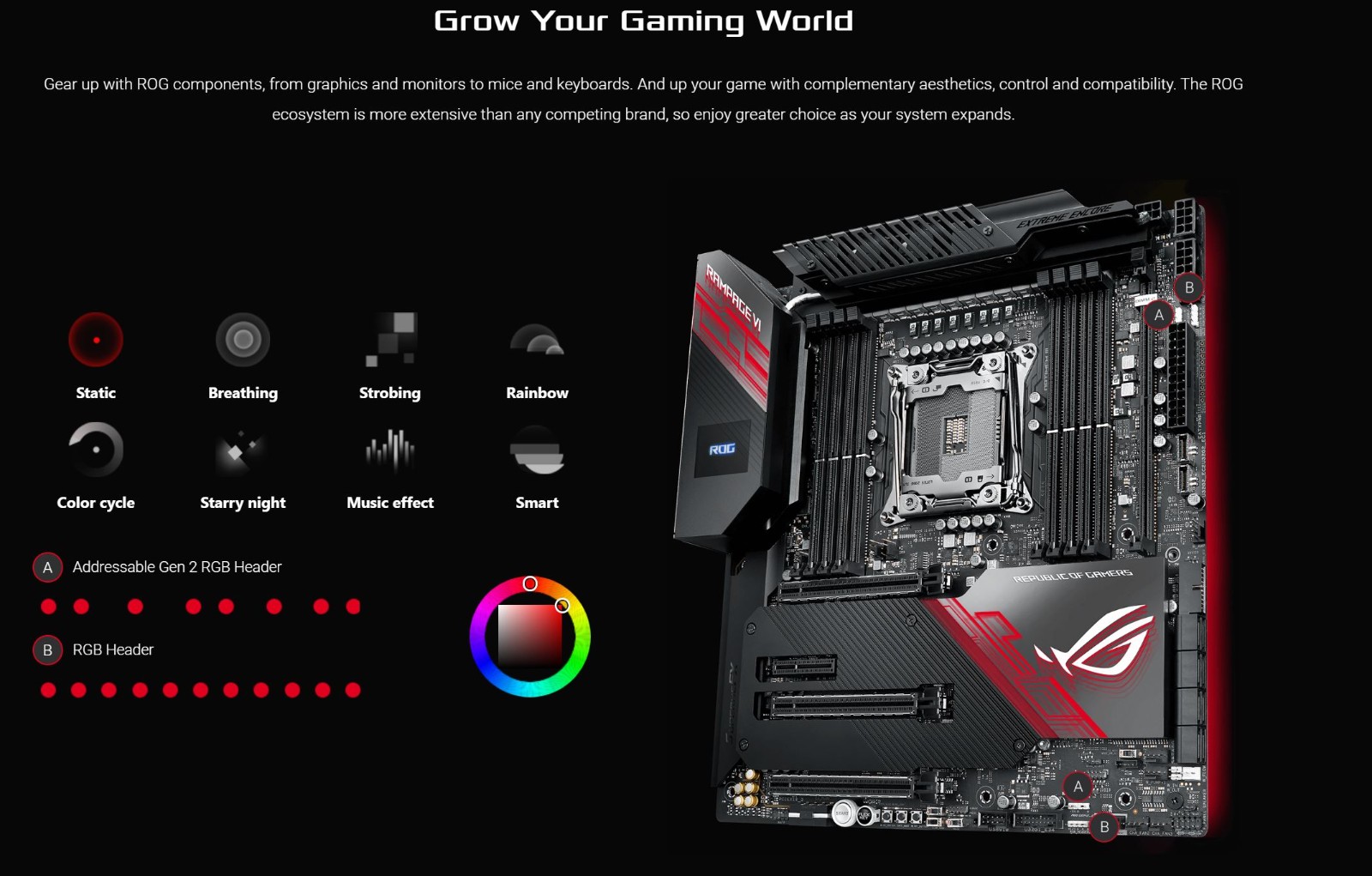

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG   devices

- Addressable Gen 2 Header

ASUS Exclusive Features :

- USB BIOS FlashBack™

- AI Suite 3

- Ai Charger

- ASUS CrashFree BIOS 3

- Armoury Crate

- Pre-mounted I/O Shield

- ASUS NODE: hardware control interface

- ASUS C.P.R.(CPU Parameter Recall)

ASUS Q-Design :

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Armoury Crate

Back I/O Ports

1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C)

1 x USB 2.0

1 x Optical S/PDIF out

1 x Clear CMOS button(s)

1 x USB BIOS FlashBack™ Button(s)

1 x ASUS Wi-Fi Module

5 x LED-illuminated audio jacks

8 x USB 3.2 Gen 1 (up to 5Gbps) ports

2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)

1 x Aquantia AQC-107 10G LAN port

Anti-surge LAN (RJ45) port

Internal I/O Ports

1 x W_PUMP+ 1

1 x W_PUMP+ 2

1 x WB_SENSOR

2 x Aura Addressable Strip Header(s)

2 x Aura RGB Strip Headers

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s)   additional 4 USB 3.2 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices   support (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices   support (PCIE 3.0 x 4 mode)

8 x SATA 6Gb/s connector(s)

1 x VROC_HW_Key

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x H_AMP fan connector

1 x HS_FAN

1 x 24-pin EATX Power connector(s)

2 x 8-pin EATX 12V Power connectors

1 x 6-pin EZ_PLUG Power connector(s)

1 x 4-pin EZ_PLUG Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Slow Mode switch(es)

10 x ProbeIt Measurement Points

1 x BIOS Switch button(s)

1 x Node Connector(s)

1 x LN2 Mode jumper(s)

1 x Safe Boot button

1 x ReTry button

1 x System panel connector

2 x T_Sensor Connector

1 x W_IN header

1 x W_OUT header

1 x W_FLOW header

1 x Start button

2 x USB 3.2 Gen 2 front panel connector

1 x Speaker connector

1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)

1 x PAUSE Switch

1 x RSVD Switch

1 x FlexKey button

1 x FS Mode switch

Accessories

User's manual

1 x ROG logo plate sticker

6 x SATA 6Gb/s cable(s)

3 x M.2 Screw Package

1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi   802.11a/b/g/n/ac compliant)

1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x   RGB headers, 3 x 2-pin Thermal sensor header)

1 x Fan Extension Card II power cable

1 x Fan Extension Card II NODE connector cable

1 x Fan Extension Card II screw package

1 x Q-Connector

1 x ROG Logo Sticker(s)

1 x Extension Cable for RGB strips (80 cm)

1 x Extension cable for Addressable LED

3 x Thermistor cable(s)

1 x USB drive with utilities and drivers

1 x ROG coaster(s)

1 x USB 3.2 Gen 1 Header to USB 2.0 adapter cable

1 x ROG weave SATA 6G cable

1 x ROG DIMM.2 with heatsink

1 x M.2 Pad for ROG DIMM.2

1 x 2-in-1 Rubber pad

1 x ROG Multi-Bit screwdriver

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2,   ACPI 6.2

Manageability

WfM 2.0, WOL by PME, PXE

Support Disc

Overwolf

Daemon Tools Software

WinRAR

Anti-virus software (1-year full subscription)

OS

Windows® 10 64-bit

Form Factor

Extended ATX Form Factor

12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Note

*1 When the PCIe runs x16/x16/x8 mode, DIMM.2_2 will be   disabled.

*2 When PCIe runs x16/x16/x4 mode, DIMM.2_2 will be disabled.

*3 The PCIe 3.0 x4 slot shares bandwidth with M.2_2.

*4-1 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x8   mode on 48-Lane CPU.

*4-2 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x4   mode on 44-Lane CPU.

*4-3 DIMM.2 will be disabled when using 28-Lane CPU.

*5 The PCIe 3.0 x4 slot shares bandwidth with M.2_2.

*6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not   supported for 8-Channel audio.

*7 USB 3.2 Gen 2x2 will be disabled when using 28-Lane CPU.
