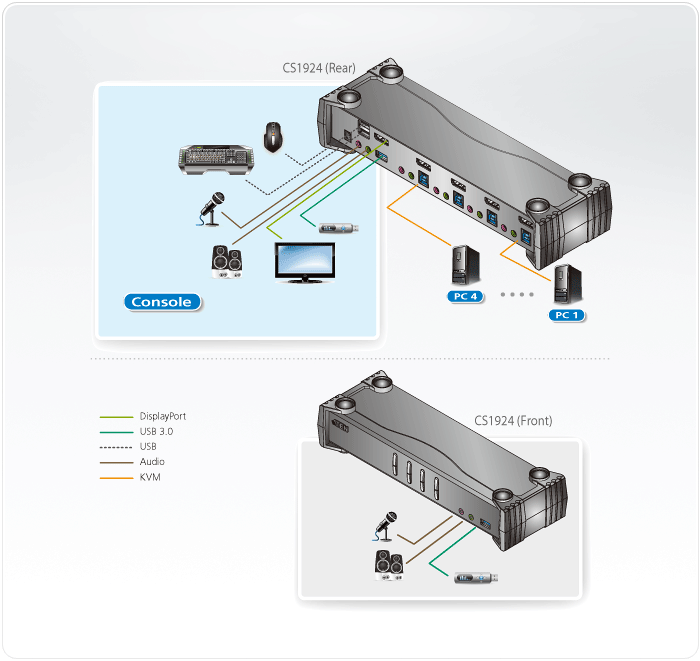

Aten 4 Port USB 3.0 4K DisplayPort KVMP Switch (CS1924)
Supports superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz); 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Computer selection via front panel pushbuttons, hotkeys and mouse
Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector
DisplayPort Dual – Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
Specifications
Computer Connections
4
Port Selection
Hotkey, Pushbutton, Mouse
Connectors
Console Ports
2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports
4 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Power
1 x DC Jack
USB Hub
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Switches
Selected
4 x Pushbutton
LEDs
On Line /Selected
4 (Orange)
USB Link
4 (Green)
Emulation
Keyboard / Mouse
USB
Video
4096 x 2160 @ 60Hz
Scan Interval
1-99 Seconds (Default: 5 sec.)
Power Consumption
DC5V:2.33W:61BTU
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20-60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal, Plastic
Weight
0.91 kg ( 2 lb )
Dimensions (L x W x H)
27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
