Audioengine 2+ Wireless Desktop Speakers - Satin Black The A2+ Desktop Speakers provide clear, full audio and can easily be connected to any device in seconds. Great for your desktop and smaller rooms.

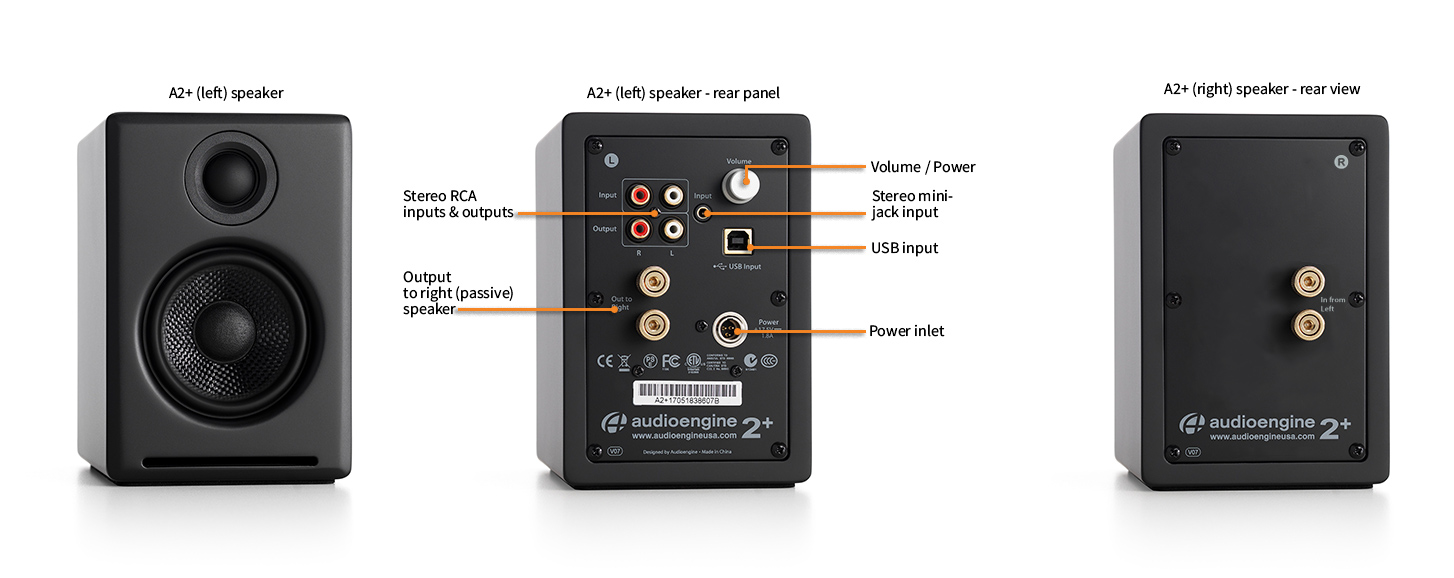

GENERAL SPECIFICATIONS Type 2.0 powered (active) multimedia desktop speaker system Amplifier type Dual class AB monolithic Power output 60W peak power total (15W RMS / 30W peak per channel), AES Drivers 2.75″ aramid fiber woofers, 3/4” silk dome tweeters Inputs 3.5mm stereo mini-jack, RCA, USB Outputs RCA variable line-out Input voltages 110-240V 50/60Hz auto-switching SNR >95dB (typical A-weighted) THD+N <0.05% at all power settings Crosstalk -50dB Freq. response 65Hz-22kHz ±2.0dB Input impedance 10K ohms unbalanced Protection Output current limiting, thermal over-temperature, power on/off transient protection USB SPECIFICATIONS Connector type USB type-B USB device class type 1.1 or above Internal D/A converter TI/Burr Brown PCM2704C Input bit depth up to 16 bits native Input sample rate up to 48KHz native WEIGHTS AND MEASURES Dimensions (each) 6”(H) x 4”(W) x 5.25”(D) Weight (LEFT speaker) 1.6Kg/3.55lbs Weight (RIGHT speaker) 1.4Kg/3.15lbs Shipping weight 4.6kg/10lbs per pair Shipping box dims 10.5” (H) x 15” (L) x 7” (W) FINISH OPTIONS Satin Black Paint Hi-Gloss White Paint Hi-Gloss Red Paint ENVIRONMENTAL REQUIREMENTS Operating temperature: 32° to 95° F Non-operating temperature: -4° to 113° F Relative humidity: 5% to 95% non-condensing MATERIALS AND CONTRUCTION
INCLUDED ACCESSORIES
CUSTOM BUILT Audioengine designs and manufactures our own tweeters, woofers, and other critical components. In other words, these are not “box built” speakers with off-the-shelf parts but custom-designed to our specifications. What we do not fabricate directly in our factory we have made to our designs (parts such as transformers, magnets, and wiring harnesses, for example). The cabinets, drivers, bass port designs, amplifiers, and crossovers are all painstakingly tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires much less power than passive speakers and a separate integrated amplifier or similar A/V components. DRIVERS Audioengine uses audiophile-quality, ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives very smooth response. The woofers are aramid fiber woven glass composite with rubber surrounds. Aramid fiber is obviously very strong, which means that the woofer retains its shape when being driven at high levels. The speaker materials and construction are robust enough to stand up to some serious thrashing, so speaker grills aren’t needed and they will sound and look great after many years of use. POWER AMPLIFIERS The amplifiers in Audioengine speakers are located in the left speaker and are a conservatively rated analog design. All components are tuned together for each model, which provides a much more efficient system requiring less power than passive speakers and separate amplifiers. Circuit boards for the power and preamp sections are mounted for maximum mechanical shock protection. POWER TRANSFORMERS Power transformers are a large contributor to the overall audio performance, especially in the low end. Again, no off-the-shelf parts. Audioengine uses gapless core toroidal transformers which have a tighter radiated magnetic field, directly translating to lower noise. They are lighter than standard, lower-cost “EI” transformers and also generate less heat. SHEILDING Both drivers are directly video shielded and allow the user to place the speakers within a few inches of a video monitor. This shielding also offers protection for hard-drive digital music players. BASED ON STUDIO MONITOR DESIGNS Studio monitor speakers are used by producers and engineers in recording and production studios. They are designed with a theoretical flat frequency response which allows the engineer to create a final mix in such a way that the recorded music will sound good on most other speakers. Although Audioengine speakers are not designed to be up-close “nearfield” studio monitors, we do carry over much of the same higher-end technology, components, and design philosophy for Audioengine speakers. CABINETS To minimize unwanted resonances and distortion, Audioengine cabinets have thick high-resin MDF walls with extensive internal bracing. Heavy internal sound-damping material is used to reduce unwanted sound reflections inside the cabinet. All cabinet edges are rounded which look great and reduce high-frequency diffraction effects on the front baffles. Each cabinet contains tuned, front-port slots. Both speakers are tuned and tested together and sold in pairs. |
