Ergotron ZIP40 Charging Cart

The one cart that gets it all done. The Zip40 is a truly universal cart for transporting, securing, protecting and charging all your mobile computing devices: Use it with tablets, Chromebook™, Ultrabook™, MacBook® and laptops—almost any device with a display size up to 15.6". Integrated PowerShuttle® Technology optimizes total charge time while safely preventing electrical circuit overload.

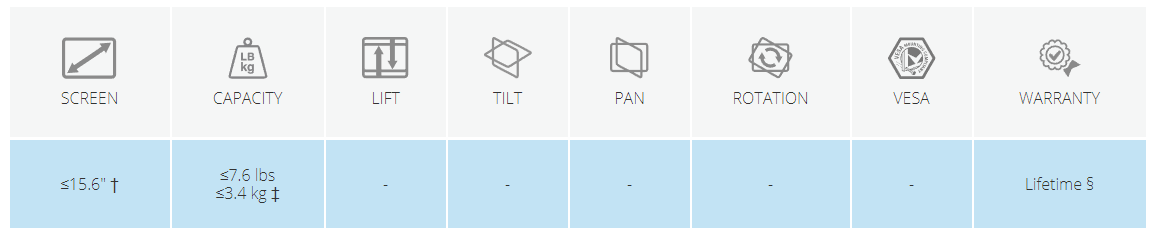

Specifications

Part Numbers: North America = DM40-1009-1;Europe = DM40-1009-2;United Kindom/Ireland = DM40-1009-3;Hong Kong/Malaysia/Singapore = DM40-1009-3;Australia/New Zealand = DM40-1009-4;China = DM40-1009-5;Japan = DM40-1009-6

Description: Zip40 Charging Cart (black/silver)

Includes 40 dividers, 9 small device divider stoppers, 12.5' (3.8 m) country-specific power cord, 4 country-specific 10-outlet power strips, two 20-unit brick storage trays, four 5ʺ dual-wheel locking casters, external auxiliary outlet (2 receptacles in US, JP or 1 receptacle in EU, UK, AU, CN), 2 mounting brackets for Ethernet switch, 2 internal auxiliary outlets for Ethernet switch and WAP installation, power on/off switch, 4 keys

Ships fully assembled

Total Capacity: Up to 40 devices with 1.1"-wide (28 mm) slot; up to 30 devices with 1.9"-wide (48 mm) slot

Maximum device dimensions: 17.1ʺW x 11.2ʺH (43.4 x 28.4 cm) including case and cord

Divider bumpers shorten the slot size to provide easy plug-in access for smaller tablet devices

Maximum adapter dimensions: Brick-style AC adapter = 7ʺH x 3ʺW x 2.2ʺD (17.8 x 7.6 x 5.6 cm). Wall-plug-style AC adapter = 2.2ʺW x 4.7ʺL x 3.9ʺD (5.5 x 12 x 10 cm) including cable strain relief. Cable diameter = 2.6–4.6 mm

Weight capacity: Total = 255 lbs (116 kg); 76.5 lbs (34.7 kg) per shelf (3 shelves total in cart); 25 lbs (11.3 kg) top worksurface. Per device maximum weight of 7.6 lbs (3.4 kg) assumes 10 devices per shelf in a cart configured to hold 30 devices in total

Country-specific 10-receptacle outlet strip is designed to work with oversized wall-style and brick-style AC adapters

Uses the AC adapters that come with each device. AC adapters are not included

Cooling/Ventilation: Four 12V DC continuous operation fans and ventilated doors keep equipment cool

External Auxiliary Outlet(s) give you an always-on outlet to plug in extra peripherals like printers or document cameras. No need to choose between using the auxiliary outlets and charging devices—do both at the same time!

Location included for installation of a Wireless Access Point (WAP not included). Maximum dimensions of the WAP = 10ʺW x 10ʺD x 2.2ʺH (25.4 x 25.4 x 5.6 cm)

Cart can be upgraded to add Ethernet management capability in the future

Country-specific power cord =12.5ʹ (3.8 m) long; stored on a recessed cord wrap

Environmentally clean: RoHS, REACH, WEEE and EU (94/620EC) packaging compliant

Power System: input/output = 100-240V~, 12-10A, 50/60 Hz

Temperature Range: operating 0° to 30°C (32° to 86°F); storage -40°C to -60°C (-40° to 140°F)

Relative Humidity (maximum): operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing)

Altitude (maximum): 2000 m (6,562')

Certification

UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950; UL 1678 Household, Commercial, and Institutional-Use Carts, Stands, and Entertainment Centers for Use with Audio and/or Video Equipment

ICES-003 Issue 4, Class A

FCC Part 15 Class

RoHS and Reach compliant material used

Product Dimensions: 30.3ʺW x 26.1ʺD x 45.4ʺH (77 x 66 x 115 cm)

Product Weight: 175 lbs (79 kg)

Shipping Dimensions: 37ʺW x 30ʺD x 52ʺH (94 x 75 x 132 cm)

Shipping Weight: 221 lbs (100 kg)

Warranty: Lifetime for mechanical components; three (3) years for electrical system; one (1) year for cables
