Wireless Standards

IEEE 802.11 a/ac/ax 5 GHz

IEEE 802.11 b/g/n/ax 2.4 GHz

WiFi Speeds

2402 Mbps on 5 GHz

574 Mbps on 2.4 GHz

Reception Sensitivity

5 GHz:

11ax HE80 MCS0: -90 dBm

11ax HE80 MCS11: -59 dBm

11a 54Mbps: -77 dBm

11ac VHT80 MCS0: -92dBm

11ac VHT80 MCS9: -64dBm

2.4 GHz:

11ax HE40 MCS0: -91 dBm

11ax HE40 MCS11: -60 dBm

11g 54Mbps: -76 dBm

11n HT40 MCS7: -72dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

HARDWARE

Dimensions

8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)

Antenna Type

2× Fixed High-Performance Omni-Directional Antennas

OTHERS

Package Contents

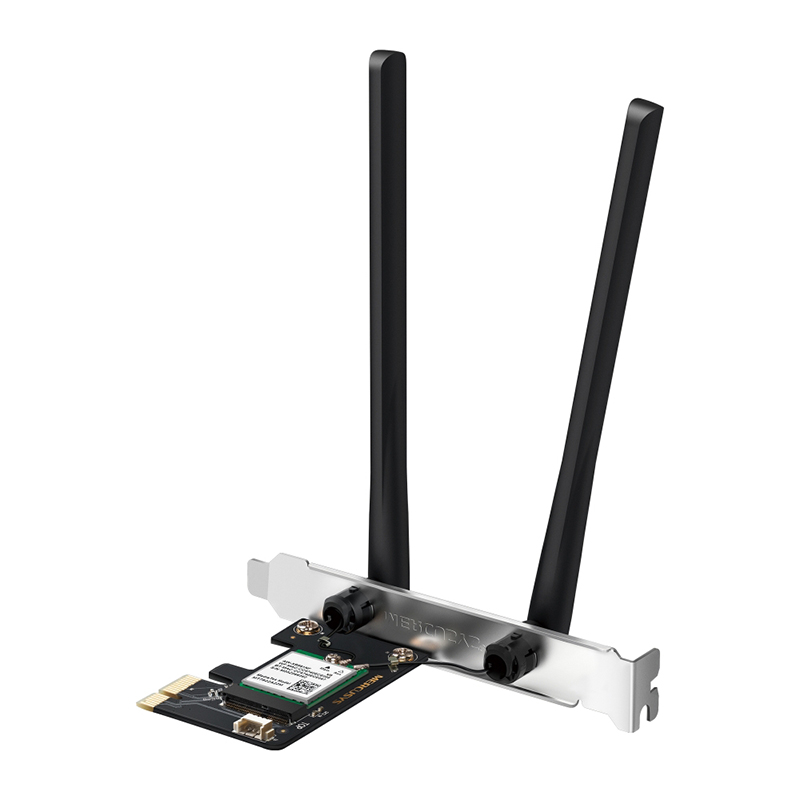

AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (MA80XE)

Bluetooth Header Cable

Quick Installation Guide

Resource CD

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

System Requirements

Supported operating systems include Windows 10, 11(64-bit)

Notes

• 1 - Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.

• 2 - Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, 1024-QAM, or HE160 require APs to also support the corresponding features. 160 MHz channels may not be all available in the 5GHz or 6 GHz band in some regions/countries due to regulatory restrictions.

• 3 - Functionality of MA80XE may be restricted on some computing systems   and platforms. Please try to update the device‘s driver for feature compatibility.

• 4 - Use of WPA3 requires APs to also support the corresponding feature.

• 5 - "Up to 75% lower latency" is based on Intel simulation data of 802.11ax with and without OFDMA using 9 clients. Average latency without OFDMA is 36 ms, with OFDMA average latency is reduced to 7.6 ms. Latency improvement requires that the AP and all clients support OFDMA.

• 6 - Based on IEEE 802.11ax specification Intel Engineering simulation. 160 MHz channels and Wi-Fi 6 technology advantages related to network managed traffic enable lower latencies, more efficient operation, and higher reliability vs. random contention-based traffic of standard Wi-Fi 5 networks. Intel and the Intel logo are trademarks of Intel Corporation or its   subsidiaries in the U.S. and/or other countries.

• 7 - Several new features are introduced in the Bluetooth Core Specification 5.0 and 5.2 Release, including 2× faster speed and 4× broader coverage compared with Bluetooth 4.2.
