Connector Type(s) | 2 - DisplayPort (20 pin) 1 - HDMI (19 pin) 1 - USB 3.2 Type-A (9 pin, Fast-Charge) 4 - USB Type-A (9 pin, 5 Gbps) 1 - RJ-45 1 - 3.5 mm Mini-Jack (4 Position) 2 - 3.5 mm Mini-Jack (3 Position) 1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) 1 - Security Lock Slot |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -10°C to 80°C (14°F to 176°F) |
Humidity | 0~90% RH |
4K Support | Yes |
Fast-Charge Port(s) | Yes |
Displays Supported | 3 |
Bus Type | USB 3.2 Gen 1 (5Gbps) |
Compatible Lock Slot | Kensington Standard Slot (K-Slot) |
Industry Standards | USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0/1.1 |
Chipset ID | VIA/VLI - VL812 Realtek - RTL8211F DisplayLink DL5911 DisplayLink DL5915 |
LED Indicators | 1 - Link (Green) 1 - Activity (Amber) |
Package Height | 2.8 in [71 mm] |
Package Length | 6.5 in [16.4 cm] |
Shipping (Package) Weight | 2.3 lb [1.0 kg] |
Package Width | 11.7 in [29.6 cm] |
Package Quantity | 1 |
Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
Maximum Digital Resolutions | 3840 x 2160 @ 30Hz (DisplayPort Video 1 - Single Display) 2560 x 1600 (DisplayPort Video 3 - Single Display) 2560 x 1440 (HDMI - Single Display) Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p. *Please see the manual for supported resolutions when using different combinations of displays (up to three external displays). |
Type and Rate | USB 3.0 - 5 Gbit/s |
UASP Support | Yes |
Compatible Networks | 10/100/1000 Mbps |
Auto MDIX | Yes |
Full Duplex Support | Yes |
Weight of Product | 13.3 oz [376 g] |
Colour | Black & Silver |
Material | Plastic |
Product Length | 10.6 in [27 cm] |
Product Width | 3.2 in [82 mm] |
Product Height | 1.3 in [3.4 cm] |
Power Source | AC Adapter Included |
Input Voltage | 100 - 240 AC |
Input Current | 1.5 A |
Output Voltage | 5 DC |
Output Current | 6.5 A |
Centre Tip Polarity | Positive |
Plug Type | N |
Power Consumption (In Watts) | 32.5 |
OS Compatibility | Windows® 7, 8, 8.1, 10, 11 macOS 10.8 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0 Chrome OS™ v55+ |
System and Cable Requirements | USB-enabled computer with an available USB 3.0 port * 4K resolution is supported on the DisplayPort Video 1 port only. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included) USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps |

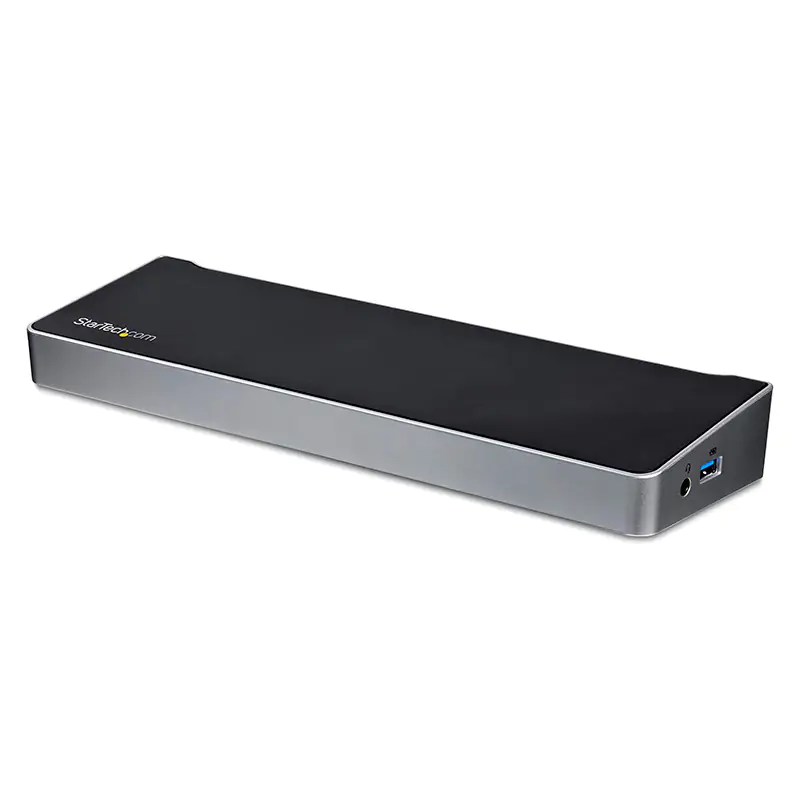

Included in Package | 1 - triple-video laptop docking station 1 - 3.3 ft [1 m] USB 3.0 host cable 1 - universal power adapter (NA/EU/UK/AU) 1 - instruction manual |
