Interface

1× Gigabit Ethernet (RJ-45) Port

Button

Reset

Power Supply

• 802.3at PoE

• 48 V Passive PoE

• 12 V / 1 A DC (Power Adapter IS NOT included)

Power Consumption

11.0W (For PoE);

9.9W (For DC)

Dimensions ( W x D x H )

V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Antenna Type

Internal Omni Antenna

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

Mounting

• Ceiling /Wall Mounting (Kits included)

• Junction Box Mounting

WIRELESS FEATURES

Coverage

115㎡(1250 ft²)***

Wireless Client Capacity

250+**

Concurrent Clients

250+**

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 1201 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)

• FCC:

<25 dBm (2.4 GHz)

<25 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller OC300

• Omada Hardware Controller OC200

• Omada Software Controller

Cloud Access

Yes, through

• OC300

• OC200

• Omada Software Controller

• Omada Cloud-Based Controller

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

Certification

CE, FCC, RoHS

Package Contents

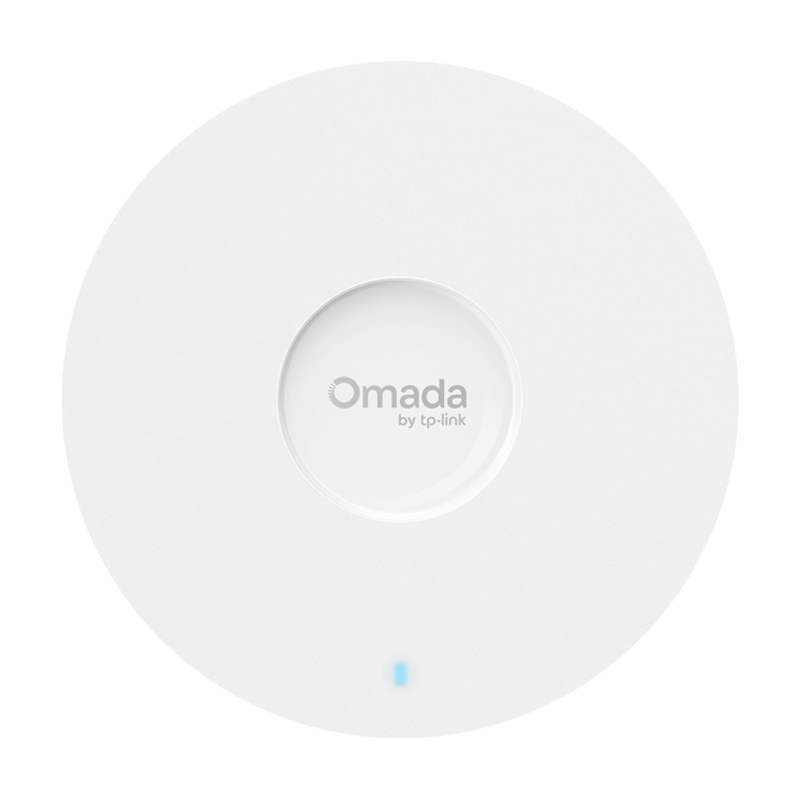

• EAP613

• Ceiling/ Wall Mounting Kits

• Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard   802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of Wi-Fi 6 (802.11ax), and features including OFDMA and MU-MIMO require clients to also support the corresponding features.

^§Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of   Omada SDN controllers. Please go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User   Guides of Omada SDN controllers for configuration methods.

*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Please go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to   confirm which models are compatible with Omada Cloud-Based Controller.
